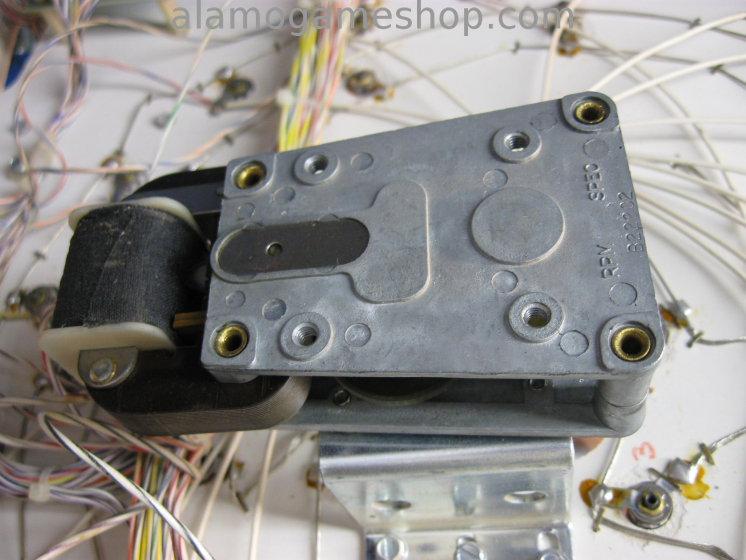

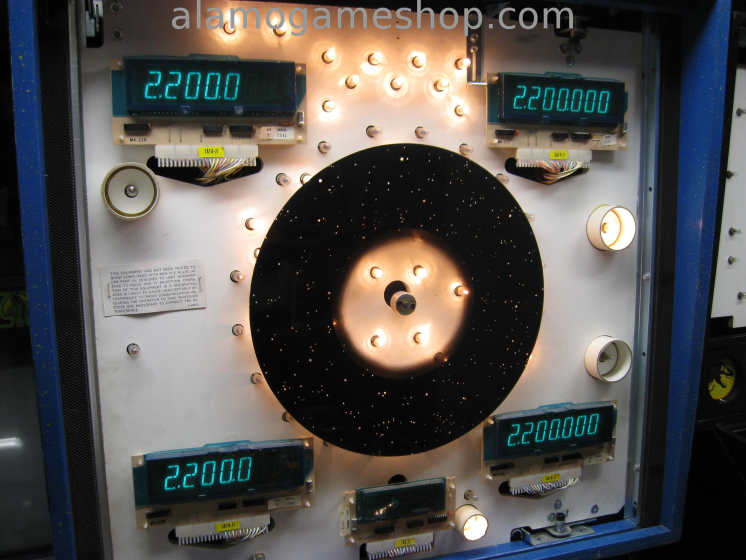

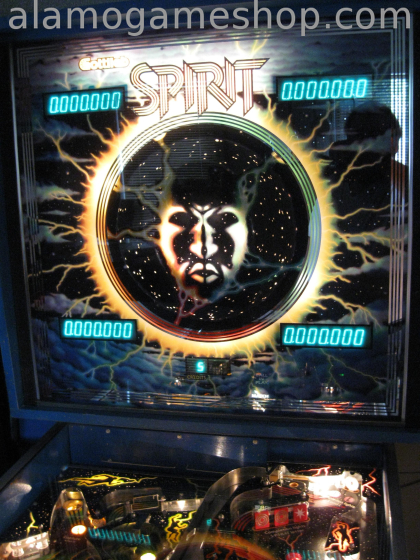

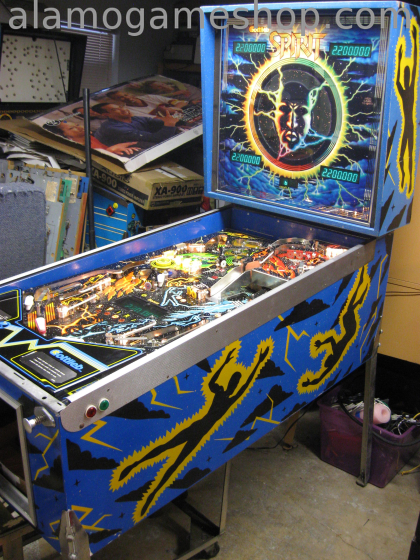

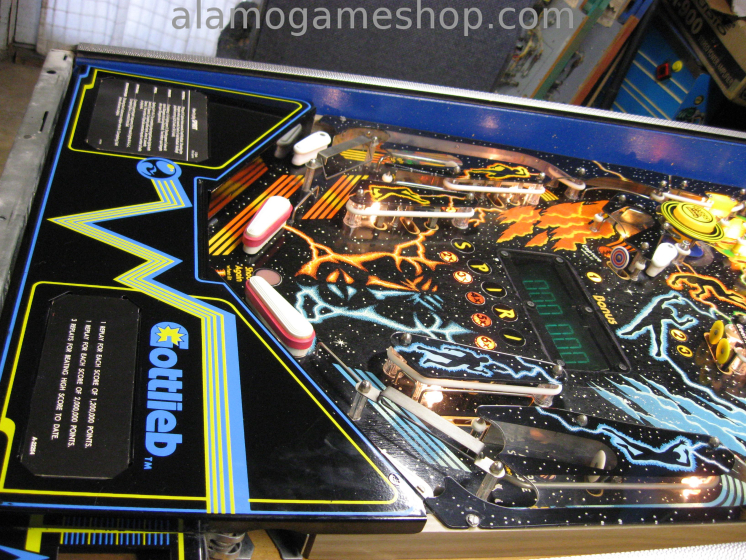

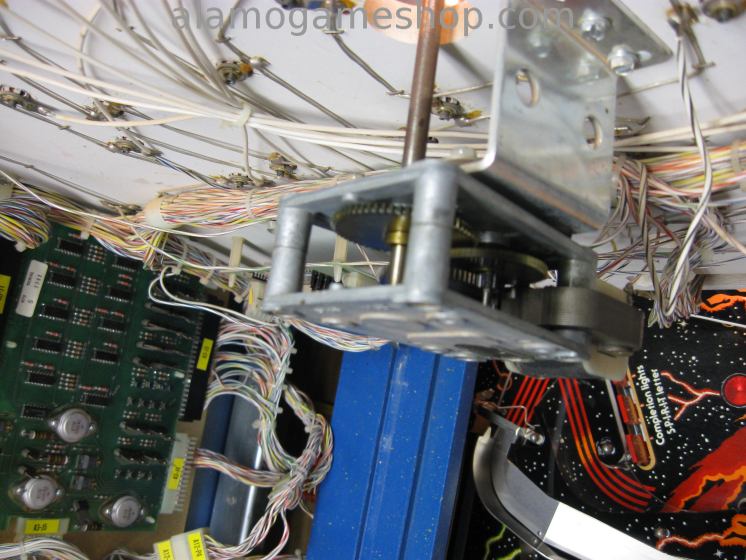

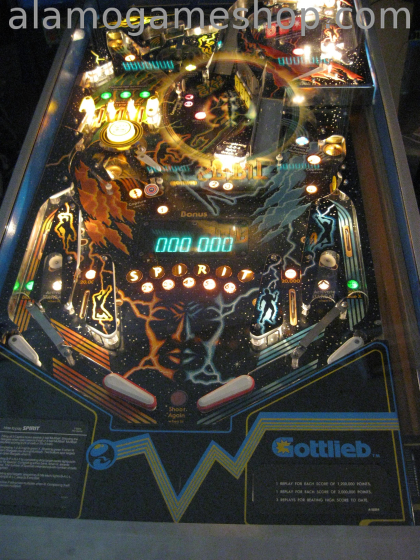

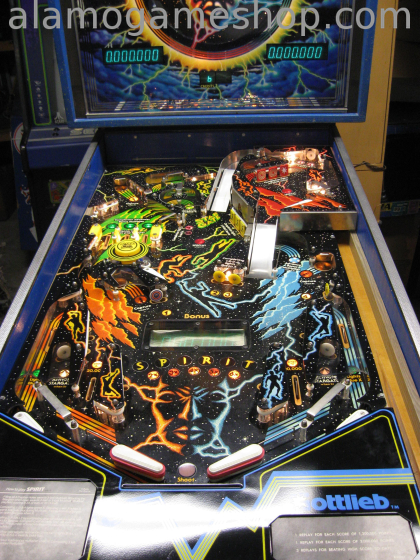

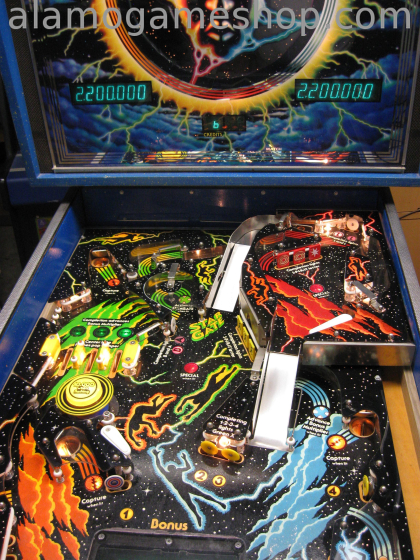

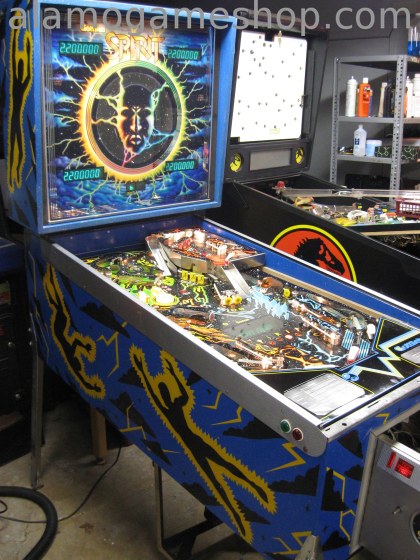

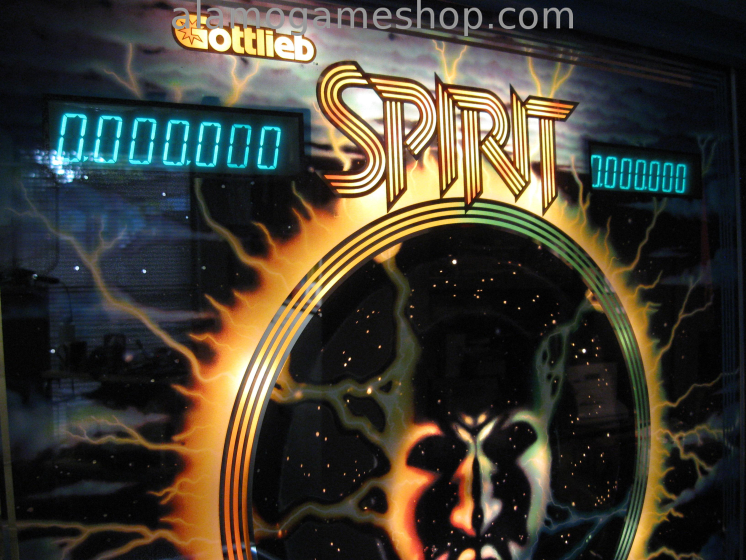

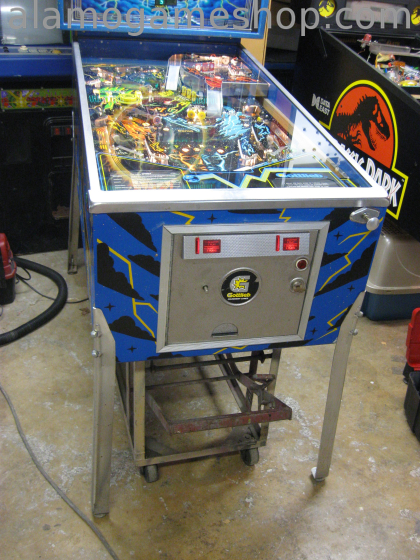

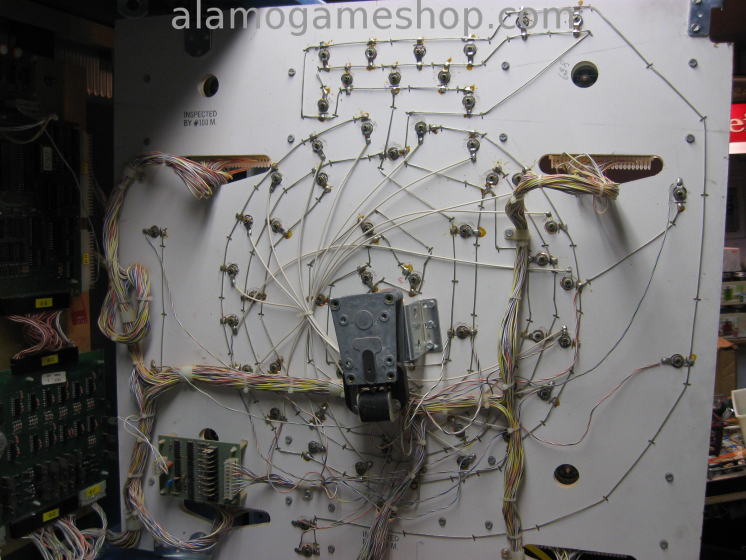

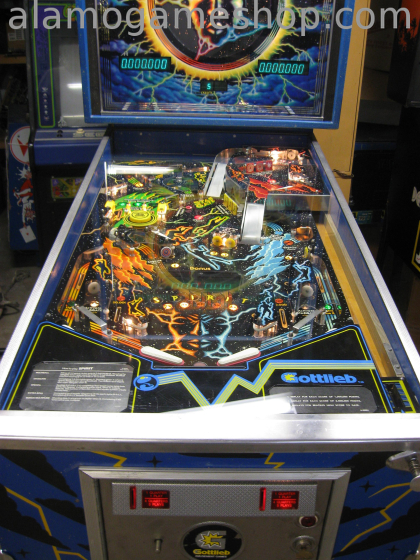

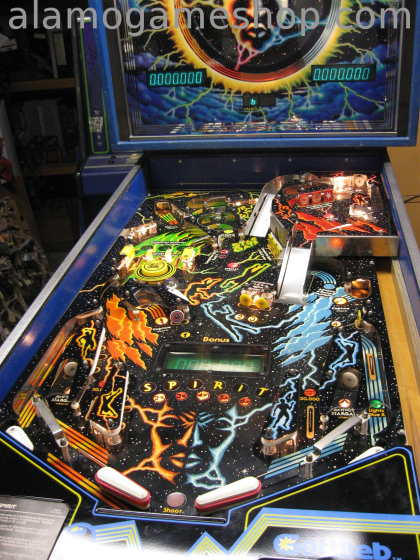

Spirit pinball by Gottlieb from 1982. Here is a rare Gottlieb with some interesting bells and whistles! The slow spinning disc behind the backglass gives the effect of stars blinking. The sounds are low and deep with a spooky theme. This one had been abused with a dried out playfield and outside cabinet. The game had 6 fuses blown, that may be a record! With 4, 10 hour days we got it working perfect and looking pretty good! The invoice notes follow:

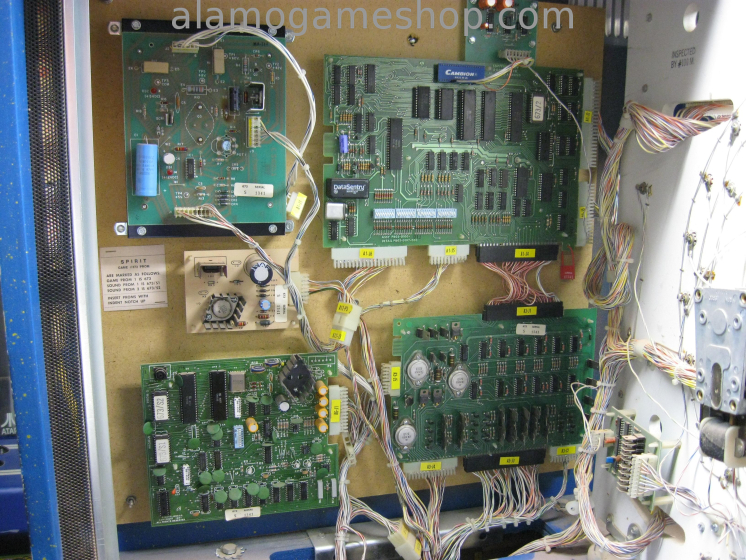

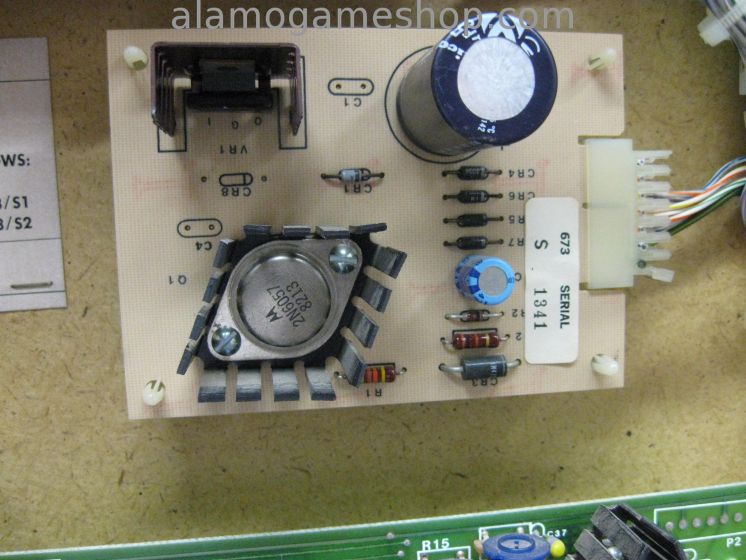

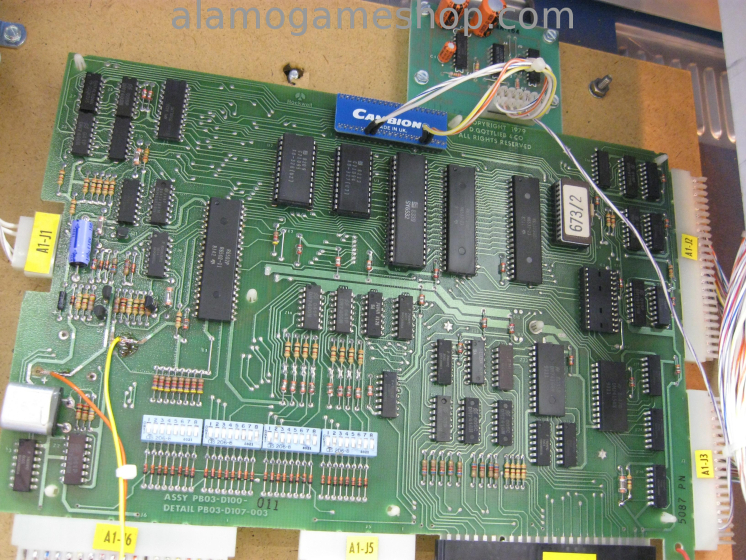

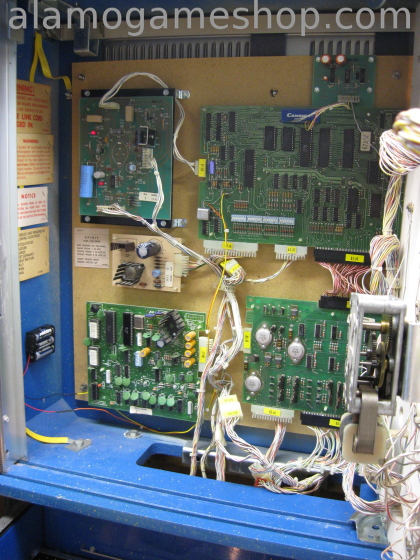

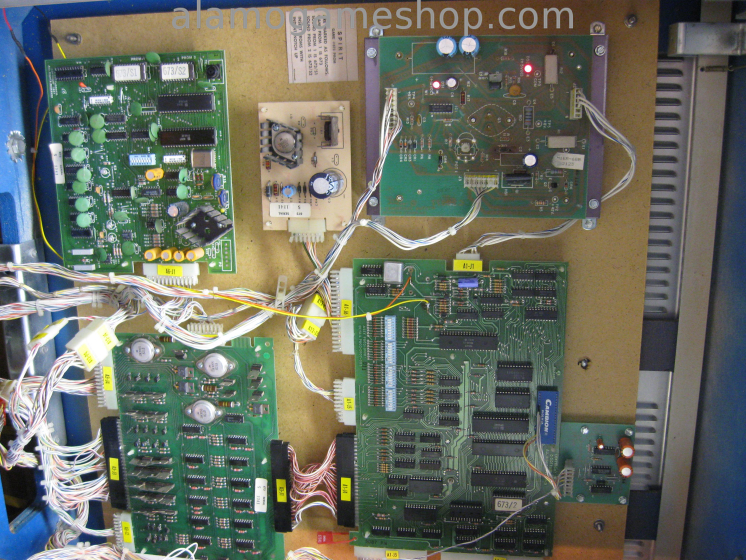

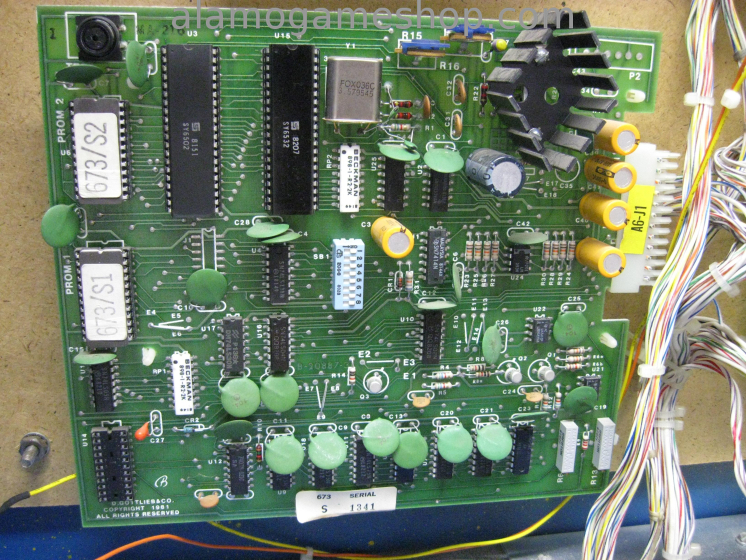

10/31/2012 06:50:36 Repaired CPU - 6532 & remove leaking battery and mount "AAA" battery pack on left wall. Cleaned all connectors & pcb edge connectors Replaced dead display. Replaced power supply. Replaced 2 coils - both out-holes. Found GI buss short under playfield - stapled buss line touching metal track on left wall (had to be factory like that).

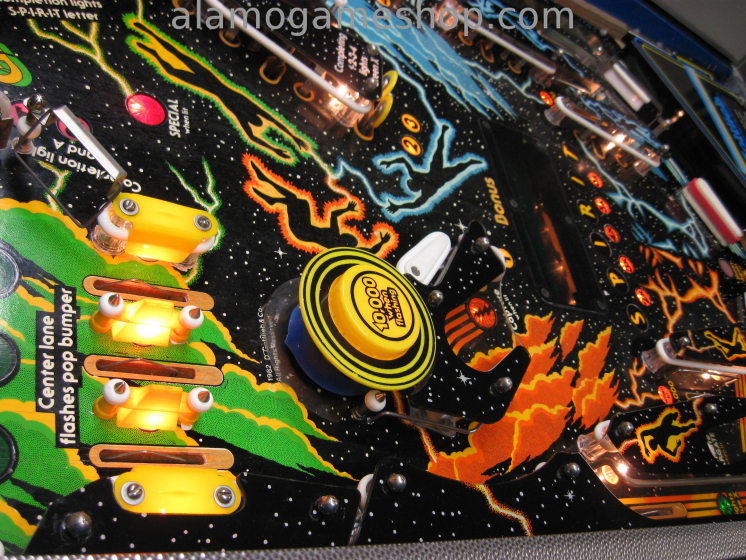

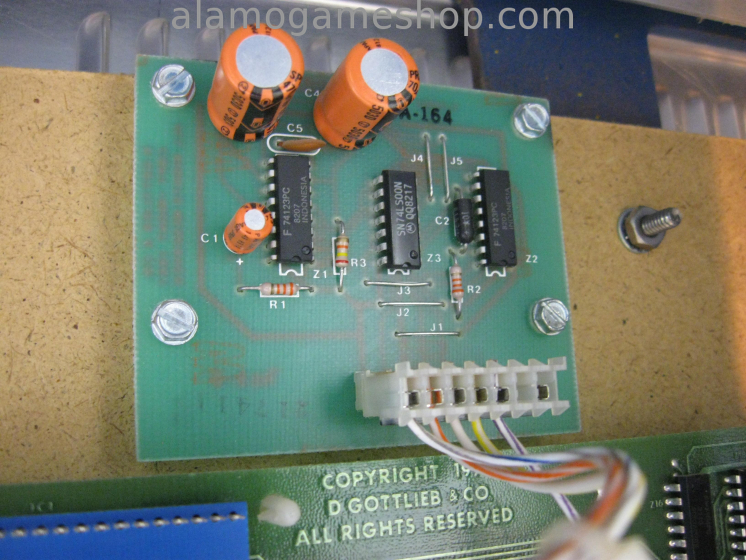

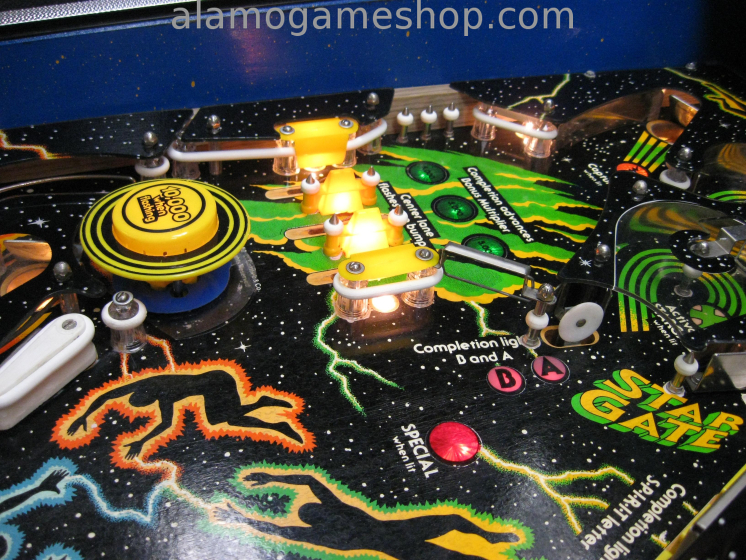

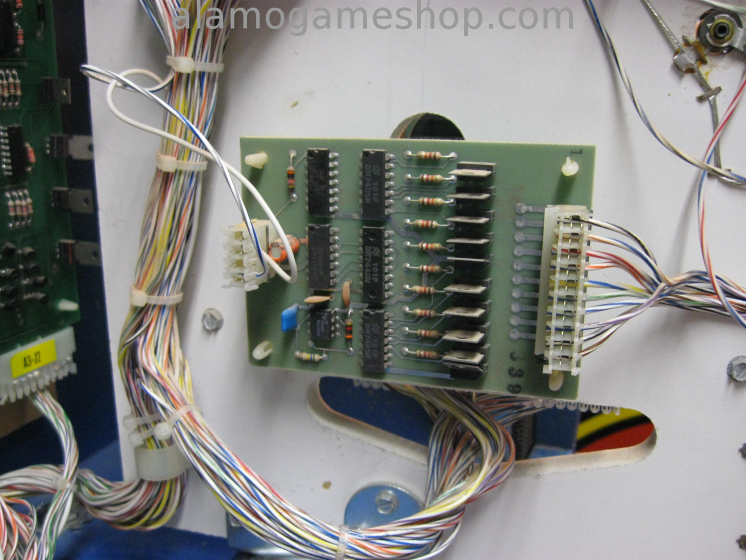

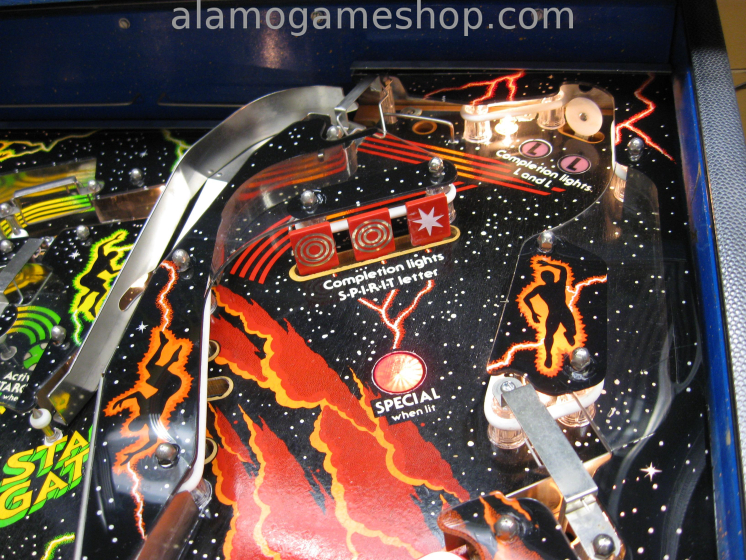

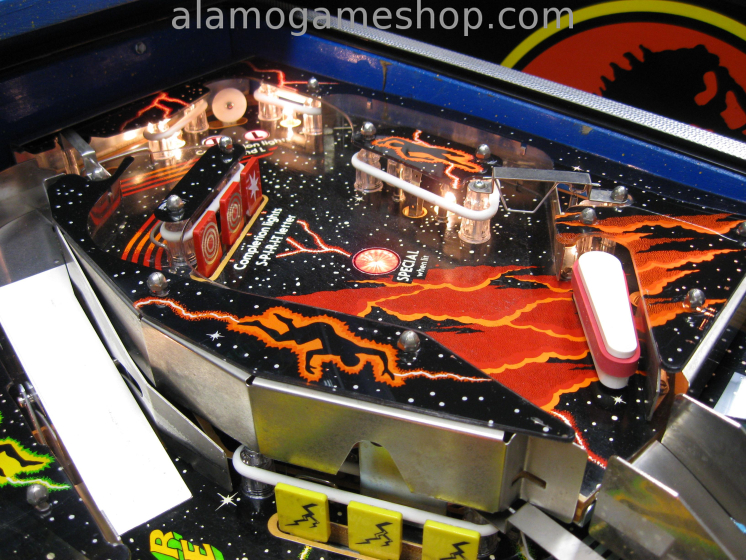

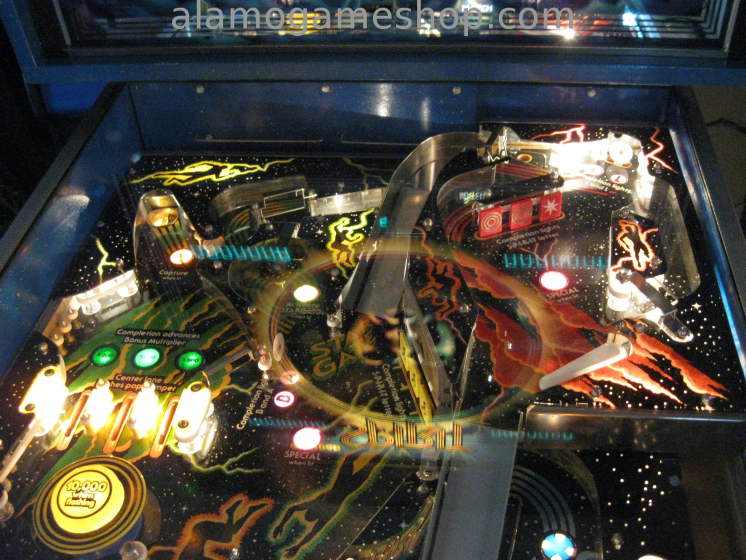

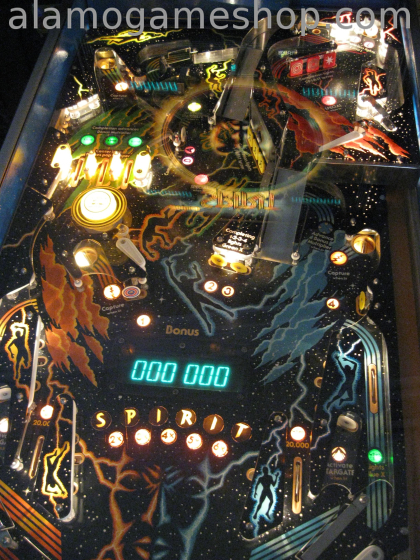

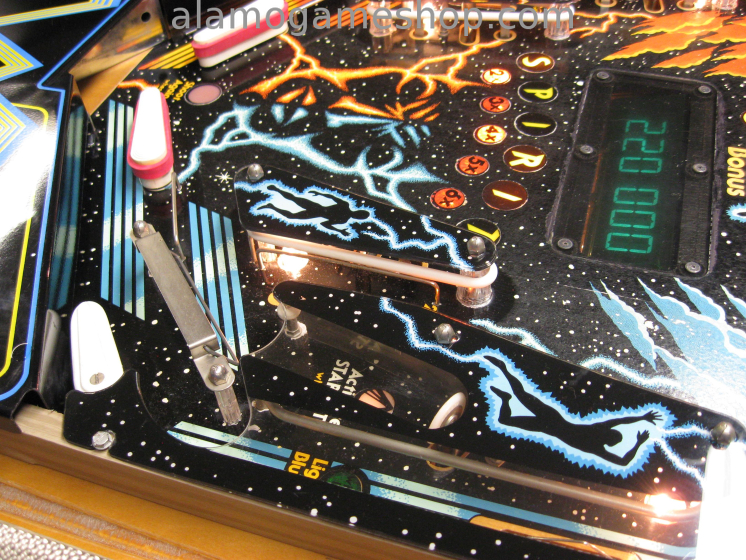

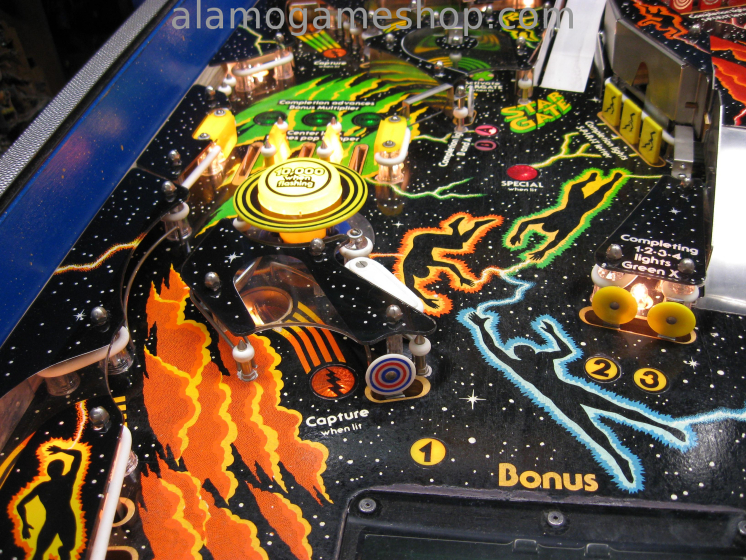

10/31/2012 06:59:17 Found shorted light sockets on switched illumination on upper playfield. Replaced skirt on pop bumper. Upgraded pop bumper pcb (modded). Replaced flipper bat on upper playfield. Clean, wax re-rubber. Install free-credit via coin return plunger. Fix leg bolt issue. Glue and nail loose backbox mounts & cabinet corners on rear.
